Postby vance2loud » Sun Jun 12, 2016 10:34 am

I thought it might be an idea to start a section for people to put printed parts files.
I'm thinking this format'
1. picture of the printed part
2. zip file with STL or similar 3d file
3. any hints or tips for printing

Please keep it rocketry related.

If you don't have access to a 3d printer there is online services available to print objects for you.
https://www.3dhubs.com/?s=adwords_g&k=3d%20printing%20service%20australia&c=258541384&a=31909008304&m=cpc&gclid=CjwKEAjw7e66BRDhnrizmcGc8VcSJABR6gaRWlJSDBDJavxW0_mIAxVpcM7LZehUqILbunyvQrysHRoC-H_w_wcB
gives a list of services local to you and rough pricing.
I have not used them but it was one of the first lists that came up from a google search.

I don't know if this was the best place to put this, so if moderators feel it should be elsewhere please move it for me, or delete this line If I got it right.
TRA #15165 AMRS #50
I do it because i can, I can because I want to, I want to because you said I couldn't. - Unknown
I have not failed. I've just found 10,000 ways that won't work.
- Thomas Alva Edison

vance2loud
Rocket Crew
Rocket Crew
Posts: 283
Joined: Wed May 14, 2014 12:44 pm
Location: Devonport, Tasmania

Re: 3D printed parts and files

Postby vance2loud » Sun Jun 12, 2016 10:54 am

As a start here is the nosecone that Is mentioned in the Proton M thread.

STL file size exceeds limits to upload, so we might have to find another solution.
For now it's here. http://www.thingiverse.com/thing:1621724
No supports required
set number of walls to to give required wall thickness
If wanting hollow set bottom layers to 1 or 2,
I use a raft for better bed adhesion ( and to allow for slight calibration errors)
Cut bottom off when done for a hollow cone.
TRA #15165 AMRS #50
I do it because i can, I can because I want to, I want to because you said I couldn't. - Unknown
I have not failed. I've just found 10,000 ways that won't work.
- Thomas Alva Edison

vance2loud
Rocket Crew
Rocket Crew
Posts: 283
Joined: Wed May 14, 2014 12:44 pm
Location: Devonport, Tasmania

Re: 3D printed parts and files

Postby vance2loud » Sun Jun 12, 2016 10:59 am

For couplers I use these,
http://www.thingiverse.com/thing:1596640
scale to size and cut bottom off in slicing program before printing.
I have had issues with the threads being a bit tight but I am trying different settings and scaling and will update with what works for me.
Thread fit will possibly be printer dependant.
TRA #15165 AMRS #50
I do it because i can, I can because I want to, I want to because you said I couldn't. - Unknown
I have not failed. I've just found 10,000 ways that won't work.
- Thomas Alva Edison

nils
Parachute Packer
Parachute Packer
Posts: 25
Joined: Fri Aug 18, 2017 3:19 pm

Re: 3D printed parts and files

Postby nils » Wed Oct 25, 2017 8:06 pm

Nosecone for my 32mm internal diameter bodytube. Makes my rocket unsinkable.

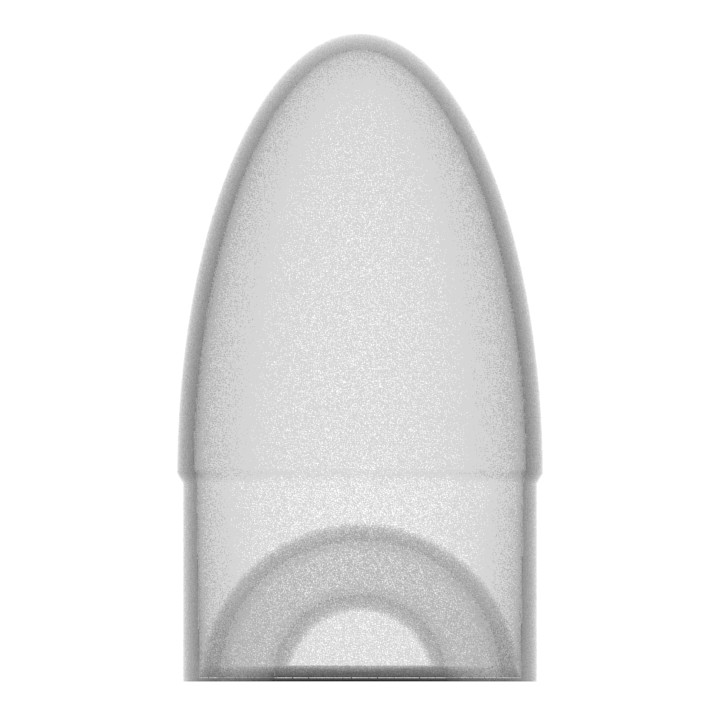

Rendered image:
Source blend file:
http://kodu.ut.ee/~nils/source/sugar_rocketry/3d_printing/32_mm_nosecone/32mm_rocket_nosecone.blend
Exported stl file:
http://kodu.ut.ee/~nils/source/sugar_rocketry/3d_printing/32_mm_nosecone/32mm_rocket_nosecone.stl
Timelapse video of actual printing:
https://www.youtube.com/watch?v=x4yo-XPNIfw

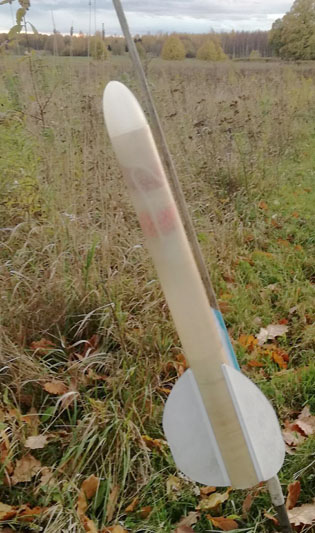

Rocket itself:
